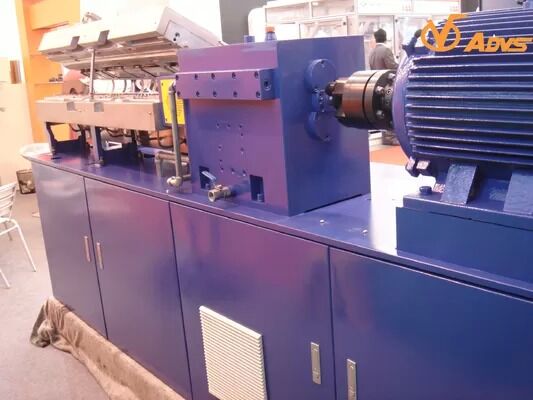

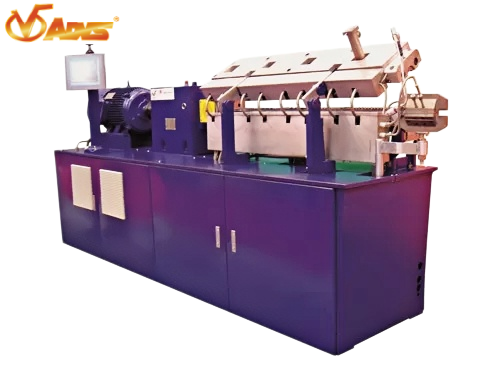

Lab Scale Twin Screw Extruder with 27mm Screw Diameter and Split Barrel Design for 380V Industrial Voltage

Lab twin screw extruder with split barrel, screw dia. 27mm for experiment and trial production L/D 32 to 60

1. General Engineering Plastics Pelletizing: ABS, PC, POM, PP, PBT, PE, PA
2. High-Performance Special Engineering Plastics: PA6T, PA9T, LCP, PPS, PEEK
3. Rubber-Plastic Blend Modification: PP, PE, PS+SBS, PA+EPDM, EVA+silicone rubber
4. Polymer Alloy Blending: PC+ABS, PA+ABS, CPE+ABS, PP+EPDM, PA+SBS, etc.
5. Masterbatch Production: Color masterbatch, functional masterbatch, white masterbatch and black masterbatch
6. Polymer Compounding & Modification: Filler compounding, fiber reinforcement and performance upgrading
7. Functional Film Extrusion: BOPP, BOPET, BOPI, BOPA, BOPS film, battery separator film, seawater desalination film, etc.

1. High Production Throughput

   Our extruders deliver 1–2 times higher throughput than conventional low-torque twin screw extruders of the same size. The largest model achieves a maximum throughput of 12 t/h per unit.

2. Superior Energy Efficiency

   Under the same production capacity, our compact extruders can replace larger models from competitors. For example, our HPL51 delivers higher throughput than standard 65-type extruders, reducing energy consumption, raw material waste and factory floor space. Additionally, we use heating rods instead of traditional cast copper heaters, saving 15%–20% of energy consumption.

3. Advanced Structural Design

• High torque: Gearbox specific load capacity up to 15 N·m/cm³
• High speed: Maximum screw speed up to 1800 rpm

4. Extended Service Life

   The output shaft adopts an unloaded bearing design, which significantly extends the service life of bearings on the vulnerable shaft. Our gearboxes have a designed service life of 72,000 hours (equivalent to 10 years of normal operation).

5. Flexible Customization

• Wide D/d ratio range: 1.33～2.0
• Customizable screw clearance: Minimum clearance down to 0.15 mm

1. Supply a full range of extruder spare parts, including barrels, screw elements, screw shafts and related components.
   • Screw element diameter: 16–400 mm
   • Barrel inner diameter: 15.6–500 mm
2. Professional repair and replacement services for imported gearboxes, applicable to extruders with screw diameter ranging from 16 mm to 450 mm.
3. Provide maintenance and replacement for imported twin screw extruders, as well as overall production line optimization and upgrading solutions.

We are dedicated to the R&D, design and manufacturing of co-rotating and counter-rotating parallel twin-screw extruder production lines. Our equipment features high torque, high efficiency, low energy consumption, high cost performance and long service life, with a gearbox designed service life of up to 72,000 hours. Our manufacturing and technical level keep pace with the world’s leading extruder manufacturers.

We provide comprehensive products and technical services as follows:

• Complete twin screw extruder production lines
• High-torque gearboxes
• Automatic LFT-D (Long Fiber Reinforced Thermoplastic) production lines
• Counter-rotating parallel twin screw extruders
• Differential concentration mixers
• Repair and precision machining of large mechanical parts
• Custom design and precision machining of screw elements for Japanese and German brand extruders

Transmission gearbox		The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
Screw element		Various kinds of function elements, mixing and dispersing elements developed by ourselves can provie flexible production for kinds of materials and production process. Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.
Barrel		Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2, verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm； Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter		Steel ball type safety clutch + torque limiter Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.
