Coperion ZSK40 Twin Screw Extruder Side Feeder | Fill Rate 10-50% | Low Feeding Fluctuation

Custom side feeder designed for Coperion ZSK40 extruders. Achieve stable feeding of glass fiber, CaCO₃ & additives with ±1% deviation. Get an exact quote within 2 hours.

• Perfect fit for ZSK40 / ZSK40 Mc18
• Filling proportion adjustable 10-50%
• Feeding accuracy fluctuation ≤ ±1%
• 18-month warranty, lifetime tech support
• Video of real operation on ZSK40 available

“After 18 years on the compounding floor, I’ve seen too many ZSK40 lines struggling with side feeding — fiber segregation, bridging, and ±5% feed fluctuation that directly ruins pellet quality. That’s why we engineered this side feeder: to make your ZSK40 run as smoothly as the day it was commissioned, even on 40% glass fiber reinforced PP.”

• The feeding barrel section is CNC-machined to match the exact center distance and screw diameter of ZSK40, ensuring a drop-in fit without any modification.

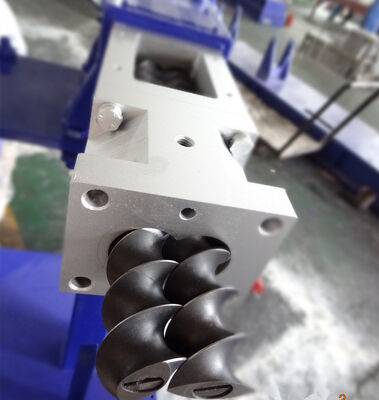

• An optimized screw geometry inside the feeder hopper prevents material bridging: we use a twin-screw feeding mechanism with self-wiping profiles, proven on high- bulk-density CaCO₃ and low-bulk-density carbon black.
• The 10-50% proportion range refers to the effective filling degree of the extruder screw channel. Our integrated control lets you fine-tune the feeder rpm to match main screw speed, keeping the specific feed load constant.

[Certifications badges: ISO 9001, CE, TÜV ]

“As a member of China Plastics Machinery Industry Association, our side feeders are operating in over 30 countries, including at compounders certified by major automotive OEMs.”

• PA6 + 30% GF: feeding 180 kg/h, torque stable, no fiber balls.
• PP + 40% Talc: feeding 220 kg/h, screw vent fully clean after 72h continuous run.
• Masterbatch with 25% carbon black: dust-free feeding, L/D utilization improved by 12%.

Powder:CaCO3,Tacl powder,TiO2,Carbon black, BaSo4,Mica,Starch,etc.;

Short fiber: GF,CF,etc.

• involute connection with shaft,
• integrated alloy liner in barrels,
• vertical connected with extruder,
• small gap between screw and barrel,
• suitable for powder and glass fiber and other inorganic of the fillers,
• governor free state;
• movable with wheels

We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.

We can supply :Twin screw extruder production line;

High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;

Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.
